Redmi Buds 6 Active is a new generation of entry-level true wireless earphones recently launched by Xiaomi’s Redmi brand. It adopts a very lightweight design in appearance, provides classic black and white color matching, and adds a fresh blue appearance. By integrating transparent box cover and transparent trim elements, the overall visual effect is more trendy and fashionable.
In terms of functional configuration, the Redmi Buds 6 Active true wireless earphones are equipped with a 14.2mm large dynamic unit, which has been fine-tuned by the Xiaomi audio laboratory and passed the NetEase Cloud Audio hardware certification, providing shocking bass effects; there are also preset default, treble enhancement, bass enhancement, vocal enhancement, and volume enhancement 5 sound effect modes to meet the style preferences of different users.
Redmi Buds 6 Active supports dual-microphone call wind noise reduction, which can effectively reduce environmental noise and provide call wind noise reduction effects of up to 4m/s; when used with some Xiaomi models and Xiaomi earphones APP, it also supports quick connection pop-up windows, spatial audio, ultra-low latency game mode and other functions. In terms of battery life, it supports 6 hours of single use and 30 hours of comprehensive playback time.

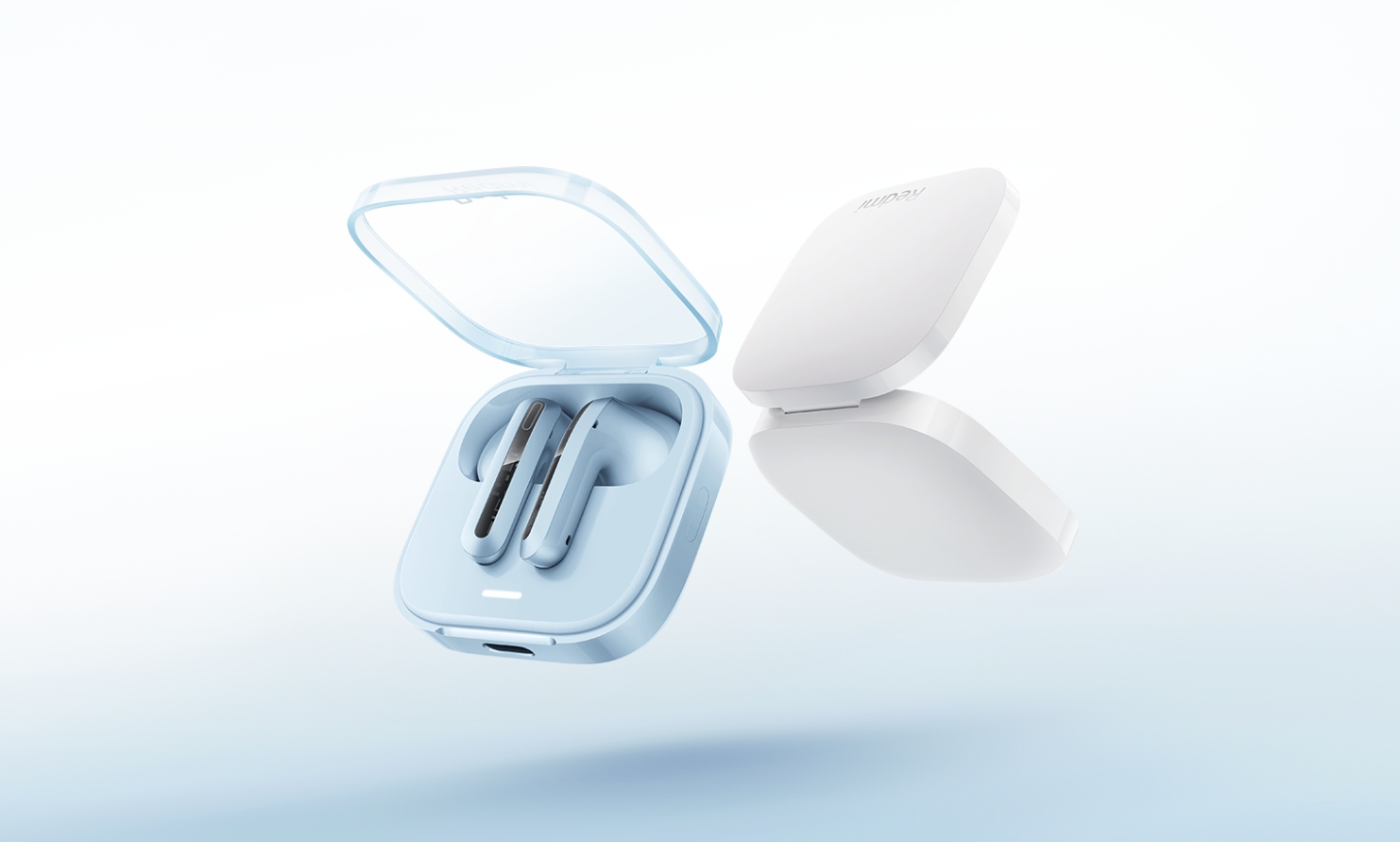

In terms of appearance, the Redmi Buds6 Active true wireless earphones adopt a curved semi-in-ear design, which is more ergonomic and can effectively balance the weight inside and outside the earphones, bringing a more comfortable wearing experience. They can be worn for a long time and firmly fit the ears without falling off. In addition, the earphones have a new fresh blue appearance, and the box cover is transparent, making the earphone body more intuitive. The outer side of the ear handle is equipped with a high-gloss decorative strip, which is more dynamic and personalized. The shell of the compartment adopts a four-curved visual thinning design, which is elegant and simple as a whole, and more flexible and compact.
Redmi Buds 6 Active is equipped with a 475mAh lithium-ion battery and a magnet for fixing the earphones. Function buttons for Bluetooth pairing, TVS protection tubes, power management chips, programmable boost ICs, lithium battery protection ICs and other components are set on the motherboard. On the earphones, the Redmi Buds 6 Active Edition is equipped with a measured 14.1mm speaker unit, a steel button battery, and a touch detection sensor. The headset motherboard is equipped with components such as Bluetooth audio SoC, MEMS microphone, lithium battery protection IC and power inductor, among which the power inductor comes from Sunlord MPHM160809S series.
The power inductor in the power circuit of wireless headsets needs to have a small size and a medium rated current, and the inductor must have low loss to achieve high conversion efficiency and strong endurance. The MPHM series launched by Sunlord Electronics not only meets the requirements of headsets for power inductors in terms of electrical performance, but its unique preparation process also makes the series very competitive in terms of price.
